CALTHERM TERA MANIFOLD

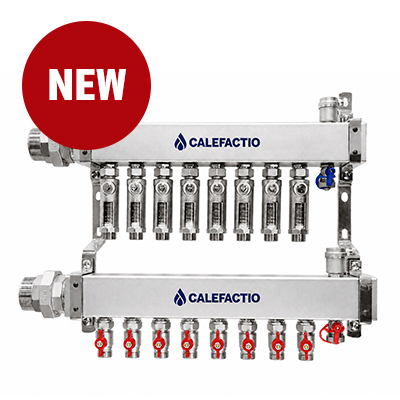

The Calefactio 2″ stainless steel manifold assembly includes two 304 stainless steel unions for system connection and is available in 8, 10, or 12 loop configurations, with a suggested maximum capacity of 38.4 GPM. Designed for commercial and industrial applications, it delivers high flow rates while minimizing pressure loss.
Pre-assembled and ready to install, it features flowmeters adjustable up to 12 L/min (3.2 GPM) and ball valves on each loop. The flowmeters and ball valves are equipped with unions to simplify assembly and maintenance.
The assembly also includes automatic air vents and drain valves. Compatible with up to 50% ethylene or propylene glycol, it is rated for a maximum pressure of 125 PSI and a maximum operating temperature of 110°C (230°F).
TECHNICAL SPECIFICATIONS
• Connections: 2 in FNPT
• Material: 304 stainless steel
• Flowmeters with integrated union: 12 LPM (3.2 GPM) per loop
• Ball valve with integrated union on each loop
• Maximum pressure: 125 PSI / 862 kPa
• Maximum temperature: 230 °F / 110 °C
• Compatibility: ethylene and propylene glycol up to 50 %
• Included: air vents and drain valves
Models
| LOOPS | MAX FLOW RATE (LPM) | MAX FLOW RATE (GMP) | |
|---|---|---|---|
| MAN8-SS200 | 8 | 96 | 25.6 |
| MAN10-SS200 | 10 | 120 | 32 |
| MAN12-SS200 | 12 | 144 | 38.4 |
